Axland

O2 Micro + O2 LED Micro

O2 Micro Product

Intelligent Lighting / Inverters:

  • Family of High Efficiency, Single stage inverters for LCD backlight applications
  • Wide range Input, with Best ignition Technique
  • Reduced Size, Increased efficiency, Simplified LCD Interface
  • OZ9920 (Off-Line AC Inverter Controller)
    – Requires No AC/DC Adapter
    – Low cost Monitor Inverter Solution

Intelligent Power:

  • Intelligent Charger

    – Low Cost Battery Charger
    – Complete Charging Function for Notebooks
    – Supports up to 4 Amp Fast Charge
    – > 90% Efficiency
  • DC-DC Converters

    – OZ826
       – Support AMD Next Generation Mobile Microprocessors
       – 6 Bit VID
       – High Efficiency, up to 94%
       – Support up to 50 Amp Output current
       – Excellent Transient Response

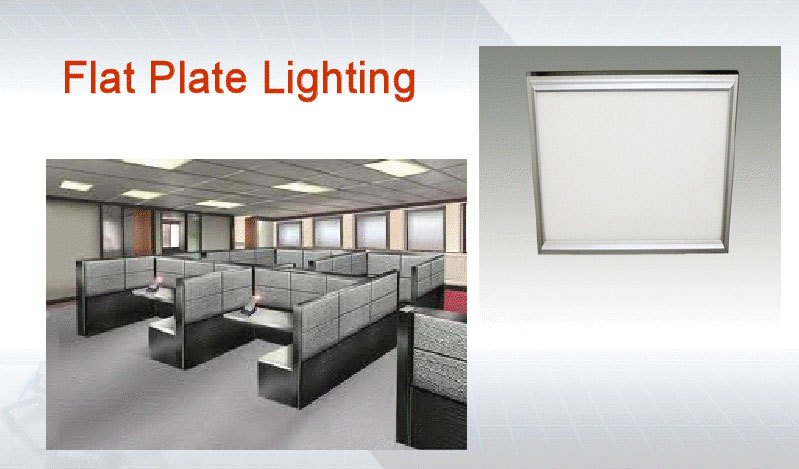

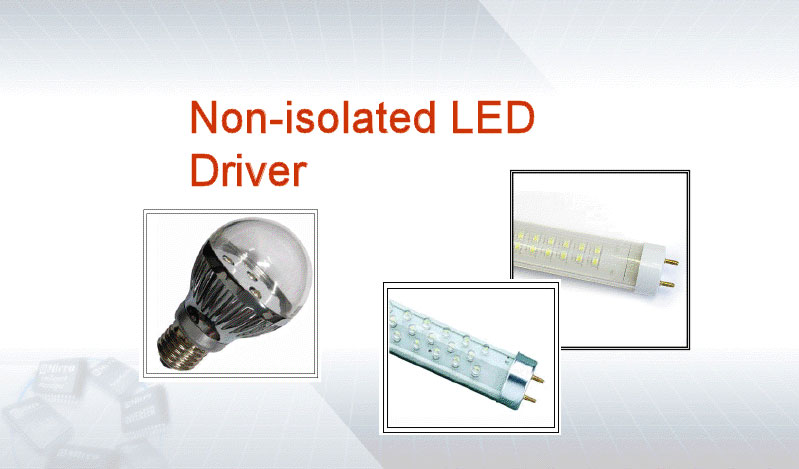

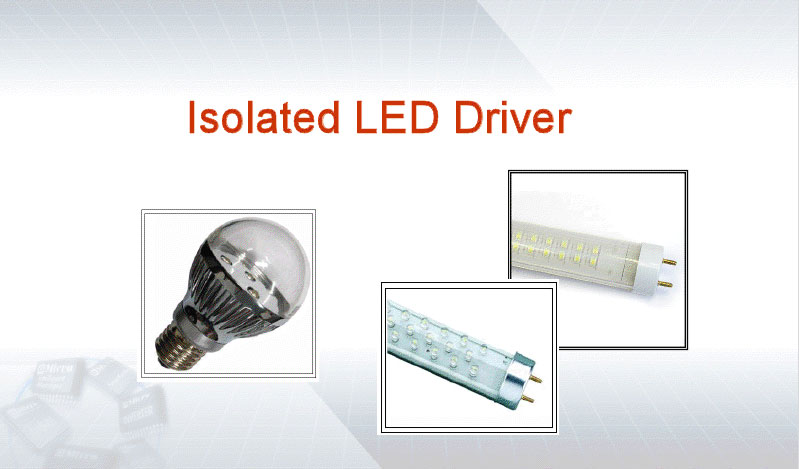

O2 Micro LED Lighting Product

Intelligent Lighting / Inverters:

Etron

Etron

SDRAM

DEN ORG PART NO GRADE Mbps/pin VDD, INTERFACE PACKAGE
16Mb 1Mx16 EM636165TS Commercial Temp. 200/166/143 3.3V, LVTTL 50-pin TSOP2
64Mb 4Mx16 EM638165TS Commercial Temp. 200/166/143 3.3V, LVTTL 54-pin TSOP2
64Mb 4Mx16 EM638165BM Commercial Temp. 200/166/143 3.3V, LVTTL 54-ball FBGA
(BM:8x8x1.2mm)
64Mb 2Mx32 EM638325TS Commercial Temp. 200/166/143 3.3V, LVTTL 86-pin TSOP2
64Mb 2Mx32 EM638325BK Commercial Temp. 200/166/143 3.3V, LVTTL 90-ball FBGA
(BK:8x13x1.2mm)
128Mb 8Mx16 EM639165TS Commercial Temp. 200/166/143 3.3V, LVTTL 54-pin TSOP2
128Mb 8Mx16 EM639165BM Commercial Temp. 200/166/143 3.3V, LVTTL 54-ball FBGA
(BM:8x8x1.2mm)
128Mb 4Mx32 EM639325TS Commercial Temp. 200/166/143 3.3V, LVTTL 86-pin TSOP2
128Mb 4Mx32 EM639325BK Commercial Temp. 200/166/143 3.3V, LVTTL 90-ball FBGA
(BK:8x13x1.2mm)
256Mb 16Mx16 EM63A165TS Commercial Temp. 200/166/143 3.3V, LVTTL 54-pin TSOP2
256Mb 16Mx16 EM63A165BM Commercial Temp. 200/166/143 3.3V, LVTTL 54-ball FBGA
(BM:8x8x1.2mm)
256Mb 32Mx8 EM63A085TS Commercial Temp. 200/166/143 3.3V, LVTTL 54-pin TSOP2
512Mb 32Mx16 EM63B165TS Commercial Temp. 200/166/143 3.3V, LVTTL 54-pin TSOP2
512Mb 32Mx16 EM63B165BM Commercial Temp. 200/166/143 3.3V, LVTTL 54-ball FBGA
(BM:8x8x1.2mm)

DDR SDRAM

DEN ORG PART NO GRADE Mbps/pin VDD, INTERFACE PACKAGE
64Mb 4Mx16 EM6A8160TSC Commercial Temp. 500/400 2.5V, SSTL_2 66-pin TSOP2
64Mb 4Mx16 EM6A8160BKC Commercial Temp. 500/400 2.5V, SSTL_2 60-ball FBGA
(BK:8x13x1.2mm)
64Mb 4Mx16 EM6A8160TSD Commercial Temp. 500/400 2.5V, SSTL_2 66-pin TSOP2
128Mb 8Mx16 EM6A9160TSC Commercial Temp. 500/400 2.5V, SSTL_2 66-pin TSOP2
128Mb 8Mx16 EM6A9160BKC Commercial Temp. 500/400 2.5V, SSTL_2 60-ball FBGA
(BK:8x13x1.2mm)
128Mb 4Mx32 EM6A9320BIB Commercial Temp. 500/400 2.5V, SSTL_2 144-ball
BGA(BI:12x12x1.4mm)
256Mb 16Mx16 EM6AA160TSE Commercial Temp. 500/400 2.5V, SSTL_2 66-pin TSOP2
256Mb 16Mx16 EM6AA160BKE Commercial Temp. 500/400 2.5V, SSTL_2 60-ball FBGA
(BK:8x13x1.2mm)
512Mb 32Mx16 EM6AB160TSH Commercial Temp. 500/400 2.5V, SSTL_2 66-pin TSOP2
512Mb 32Mx16 EM6AB160WKH Commercial Temp. 500/400 2.5V, SSTL_2 60-ball FBGA
(WK:8x13x1.2mm)
512Mb 64Mx8 EM6AB080TSB Commercial Temp. 500/400 2.5V, SSTL_2 66-pin TSOP2
512Mb 64Mx8 EM6AB080WKB Commercial Temp. 500/400 2.5V, SSTL_2 60-ball FBGA
(WK:8x13x1.2mm)
1Gb 64Mx16 EM6AC160TSA Commercial Temp. 500/400 2.5V, SSTL_2 66-pin TSOP2
1Gb 64Mx16 EM6AC160BKA Commercial Temp. 500/400 2.5V, SSTL_2 60-ball FBGA
(BK:8x13x1.2mm)

DDR2 SDRAM

DEN ORG PART NO GRADE Mbps/pin VDD, INTERFACE PACKAGE
128Mb 8Mx16 EM68916CBQD Commercial Temp. 1066/800/667 1.8V, SSTL_18 84-ball FBGA
(BQ:8×12.5×1.2mm)
256Mb 16Mx16 EM68A16CBQC Commercial Temp. 1066/800/667 1.8V, SSTL_18 84-ball FBGA
(BQ:8×12.5×1.2mm)
512Mb 32Mx16 EM68B16CWQK Commercial Temp. 1066/800/667 1.8V, SSTL_18 84-ball FBGA
(WQ:8×12.5×1.2mm)
512Mb 64Mx8 EM68B08CWAH Commercial Temp. 1066/800/667 1.8V, SSTL_18 60-ball FBGA
(WA:8x10x1.2mm)
1Gb 64Mx16 EM68C16CWQG Commercial Temp. 1066/800/667 1.8V, SSTL_18 84-ball FBGA
(WQ:8×12.5×1.2mm)
1Gb 128Mx8 EM68C08CWAG Commercial Temp. 1066/800/667 1.8V, SSTL_18 60-ball FBGA
(WA:8x10x1.2mm)
2Gb 128Mx16 EM68D16CBQC Commercial Temp. 1066/800/667 1.8V, SSTL_18 84-ball FBGA
(WQ:8×12.5×1.2mm)

DDR3 SDRAM

DEN ORG PART NO GRADE Mbps/pin VDD, INTERFACE PACKAGE
512Mb 32Mx16 EM6GB16EWKA Commercial Temp 1866/1600/1333 1.5V 96-ball
FBGA(WK:8x13x1.0mm)
512Mb 32Mx16 EM6HB16EWKA Commercial Temp 1600/1333 1.35V 96-ball
FBGA(WK:8x13x1.0mm)
1Gb 64Mx16 EM6GC16EWXC Commercial Temp. 1866/1600/1333 1.5V 96-ball FBGA
(WX:9x13x1.2mm)
1Gb 64Mx16 EM6GC16EWKG Commercial Temp. 1866/1600/1333 1.5V 96-ball FBGA
(WK:8x13x1.0mm)
1Gb 64Mx16 EM6GC16EWKG Commercial Temp. 2133 1.5V 96-ball FBGA
(WK:8x13x1.0mm)
1Gb 64Mx16 EM6GC16EWBH Commercial Temp. 1866/1600/1333 1.5V 96-ball FBGA
(WB:7.5x13x1.0mm)
1Gb 64Mx16 EM6GC16EWBH Commercial Temp. 2133 1.5V

96-ball FBGA
(WB:7.5x13x1.0mm)

1Gb 64Mx16 EM6HC16EWXC Commercial Temp. 1866/1600/1333 1.35V 96-ball FBGA
(WX:9x13x1.2mm)
1Gb 64Mx16 EM6HC16EWKG Commercial Temp. 1866/1600/1333 1.35V 96-ball FBGA
(WK:8x13x1.0mm)
1Gb 64Mx16 EM6HC16EWBH Commercial Temp. 1866/1600/1333 1.35V 96-ball FBGA (WB:7.5x13x1.0mm)
1Gb 128Mx8 EM6GC08EWUG Commercial Temp. 1866/1600/1333 1.5V 78-ball FBGA
(WU:8×10.5×1.0mm)
1Gb 128Mx8 EM6HC08EWUG Commercial Temp. 1866/1600/1333 1.35V 78-ball FBGA
(WU:8×10.5×1.0mm)
2Gb 128Mx16 EM6GD16EWBH Commercial Temp. 1866/1600/1333 1.5V 96-ball FBGA
(WB:7.5x13x1.0mm)
2Gb 128Mx16 EM6GD16EWBH Commercial Temp. 2133 1.5V 96-ball FBGA
(WB:7.5x13x1.0mm)

DDR4 SDRAM

DEN ORG PART NO GRADE Mbps/pin VDD, INTERFACE PACKAGE
4Gb 256Mx16 EM6OE16NWAKA Commercial Temp. 2666/2400 1.2V 96-ball
FBGA(WAK:7.5×13.5×1.2mm)

LPDDR2 SDRAM

DEN ORG PART NO GRADE Mbps/pin VDD, INTERFACE PACKAGE
256Mb 8Mx32 EM6KA32HVIA Commercial Temp. 1066/800/667 1.8V, HSUL_12 168-ball
(VI:12x12x0.9mm)
256Mb 8Mx32 EM6KA32HVAFA Commercial Temp. 1066/800/667 1.8V, HSUL_12 134-ball
(VAF:10×11.5×1.0mm)

Memory

Memory

We not only provide regular supply for customer, but also be able to either buy-in your excess inventory or to provide excess management service.

Among all kind of supplied components, we have more strength on

Flash (NAND / NOR) & DRAM (SDRAM / DDR)&EMMC:

Agent ISSI, Etron, Macronix

and of course, include other worldwide well-known branded company such as SAMSUNG ,TOSHIBA, Micron , NANYA, winbond, SK hynix SkyHigh SanDisk,芯天下,GigaDevice and so on

Chipset

Chipset

We are supplying all kind of electronic components for Computer, 5GCommunications, Office IA, Home IA, Consumer Electronics and Car electronics…

Among all kind of supplied components, we have more strength on  BROADCOM、XILINX、HISILICON SONY CYPRESS

PMIC

PMIC

Axland strives to offer various products and support different customers. Our continuing growth has apparently shown our highest quality products and service, competitive pricing and fastest response time.

Logic / Controller / Power :

Agnet :

Modules

Modules

Axland offers reliable, high performance brand , including Micron, SAMSUNG, SKHynix, Kingston Transcend…..

DRAM MODULES

Supplier LRDIMM SORDIMM Mini-DIMM UDIMM NVDIMM VLP Mini-DIMM RDIMM VLP RDIMM SODIMM VLP UDIMM FBDIMM
Micron
Samsung
Hynix
Kingston
Transcend

TFT

The TFT Panel

We offer many kinds of TFT Panel from various well known panel MFGR (Eg: Hannstar, AUO,Innolux etc).The TFT Panel is widely used on many different applications such as Portable DVD, PMP (Portable Media Player), Car Video Infotainment equipments, GPS (Global Position System) and LCD TV / LCD Monitor.

We are especially specialized on small size Panel (Eg: 7″, 9″) and PVI’s full range panels, whose vision is “Provide the world with the most expert small- and medium-sized TFT-LCD Module.”
